Refrigerat Recovery & Recycling Machine
50823 - Refrigerat-Recovery-and-Recycling-Machine
DETAIL

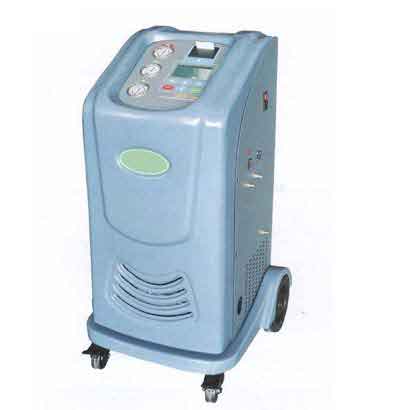

Refrigerat Recovery & Recycling Machine

Functions:
1.Main functions
    a.Updatable & Settable database, with printer
    b.Recovering/Recycling
    c.Discharging used oil
    d.Vacuum
    e.Refilling new oil
    f.Recharging
    g.Full Automatic mode

2.Auxiliary functions
    a.Vacuum system piping
    b.Multiple alarms
    c.Maintenance procedures
    d.Part inspections
    e.Calibration of  load cell
    f.Parameters setting
    g.Refrigerant tank heating
    h.Incompressible gases discharging

Features:

1.Fully automatic mode achieves recovering, recycling, discharging used oil, vacuuming, refilling new oil and
recharging functions automatically
2.compact construction and parts versatility help repair and maintenance
3.Large LCD display, easy to operate
4.Abundant A/C database, convenient for customers' reference
5.Various alarming and protection programs, automatically process abnormal conditions to ensure reliable operation of all functions

  • Specifications:

    Power supply: AC220V±10%~50/60Hz, 110V±10%~60Hz
    Vacuum pump: 4.5CFM, 10Pa
    Compresor: 12cc, MBP/HBP
    Electronic scale accuracy (refrigerant tank): ±10g
    Max. working pressure: 17.5bar
    Dry filter: 0.122L
    Refrigerant tank volume: 12L
    Recycling speed: 0.5Kg/Min (max)
    Recharging speed: 2Kg/Min (max)
    LCD display
    Electronic scale accuracy (oil tank): ±5g
    Heater power: 300w
    Language: Chinese, English
    Dimension: 635*585*1075mm
