59151

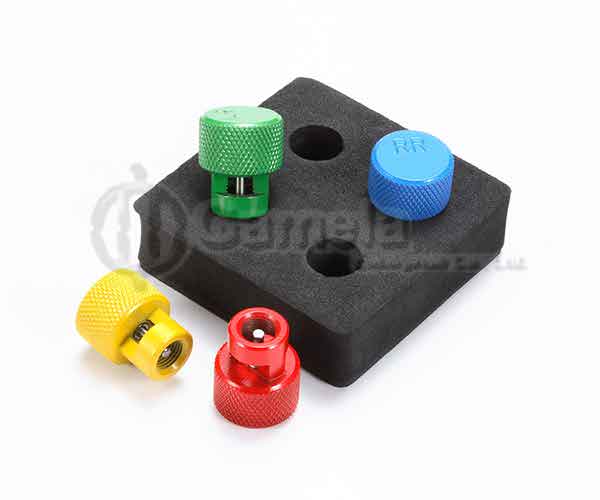

Tire Deflator for TPMS Valves
![59151 - Tire-Deflator-for-TPMS-Valves](/media/product/59151/0/Tire-Deflator-for-TPMS-Valves.jpg)
![](/media/thumbnail/59151/0/Tire-Deflator-for-TPMS-Valves.jpg)
DETAIL
Description:
• No need to removing TPMS valve core.
• Safely release the air.
• Four same sizes noted with position mark help users to install the tire back the same position.
• Save time to reset the TPMS system with computer.
Specification:
• Thread cup size: 5/16" x 32 UNEF
• Pin size: M3 x P0.5
• Red: RF (Right-Front)
• Blue: RR (Right-Rear)
• Yellow: LF (Left-Front)
• Green: LR (Left-Rear)
Instruction:

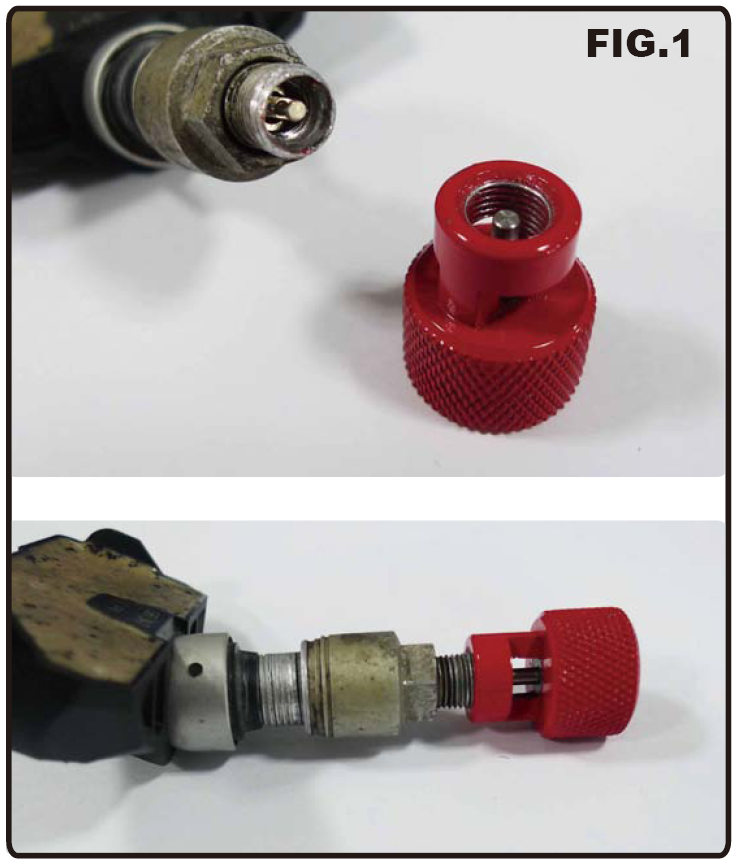

Step 1: choose each colorful cup with position mark, and install it with TMPS tire valve.
Step 2: Air is released easily.
Step 3: Remove the tire and do repair work, then install four tire back to original position.
Step 4: Put four colorful cup back to storage EVA.
![](../../media/desc/59151/0.png)
![](../../media/desc/59151/1.png)
