compressor 64131-505

64131-505

compressor

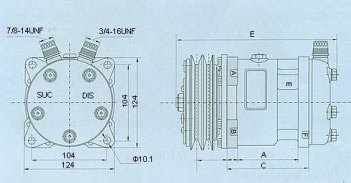

TYPE
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
64131-505
67
11
89
36.6 64131-505_00.3
182.5

64131-505_1
Technical specification:
TYPE 64131- 505
Displacement (cc/r)
87
Number of cylinder
5
diameter of cylinder (mm)
35
Stroke (mm)
18.1
Max.speed (r/min)
7500
Refrigerant
R12
Lubricant oil
SUN5GS
Voltage
DC12V/24V
Number of grove
AA
Port direction
upward
G.W (kg)
6
Packing dimension (mm)
270x190x190
QTY (set)
2950
64131-505_2
