SGPF

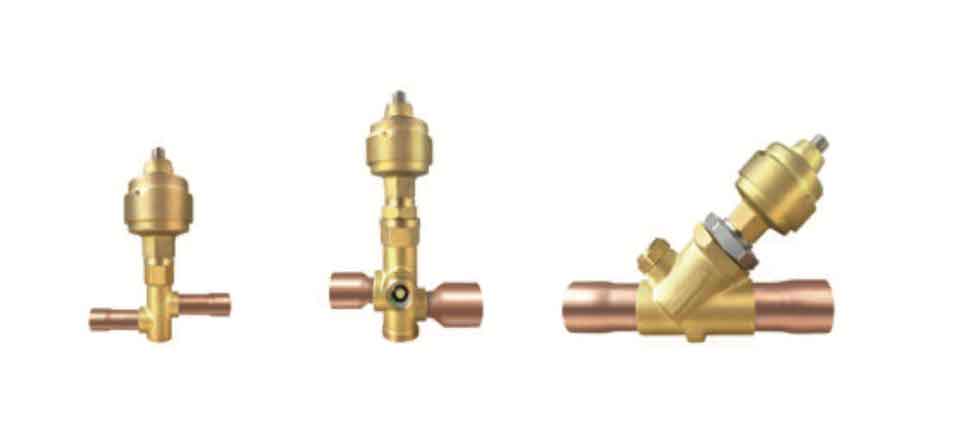

Electronic expansion valve
SGPF - electronic-expansion-valve-is-suitable-for-refrigeration-system-such-as-air-conditioners-commercial-refrigerators-small-refrigeration-storage-and-heat-pumps-It-can-accurately-control-the-refrigerant-flow-in-the-system-so-that-the-system-can-always-run-in-the-best-state-achieve-rapid-cooling-and-achieve-the-goal-of-precise-control-and-energy-saving
DETAIL

*Applicable refrigerant : HCFC or HFC
*Nominal capacity : 43 ~ 1936KW
*Medium temperature : -40 ~ + 65 °C
*Environment temperature : -40 ~ + 60 °C
*Environment humidity : 95% RH以下

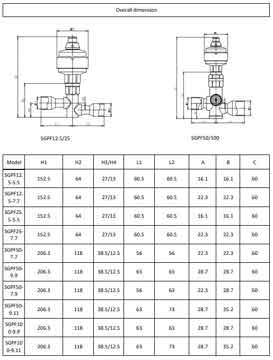

*Full open pulse : 2620 ~ 3800 see model select table for detail
*Rated voltage : 12V DC (±10%), rectangular wave

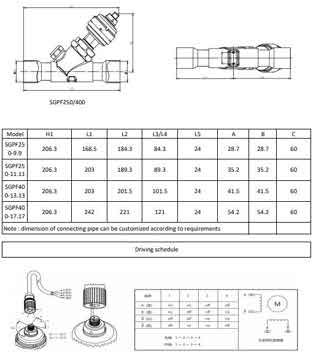

*Excitation mode : 2-2 phase excitation, double pole drive
*Excitation speed : 250pps/300pps, voltage/current
*Finishing excitation mode keeps : 0.1 ~ 1.0s
*Drive current : 230mA
*Coil resistance : 52Ω
*Coil insulation grade : E Grade
*Protect grade : IP65

Feature
* Integrated with the function of solenoid valve, expansion valve and sight glass, stable and reliable performace
* Fast response and action, precise adjustment
* New struture design of expansion valve, easy to dismantle and clean, low noise
* SGPF series products apply a balanced port design with high reverse valve opening pressure, and have bidirectional cut-off function
* Suitable for system with little oil or no oil
