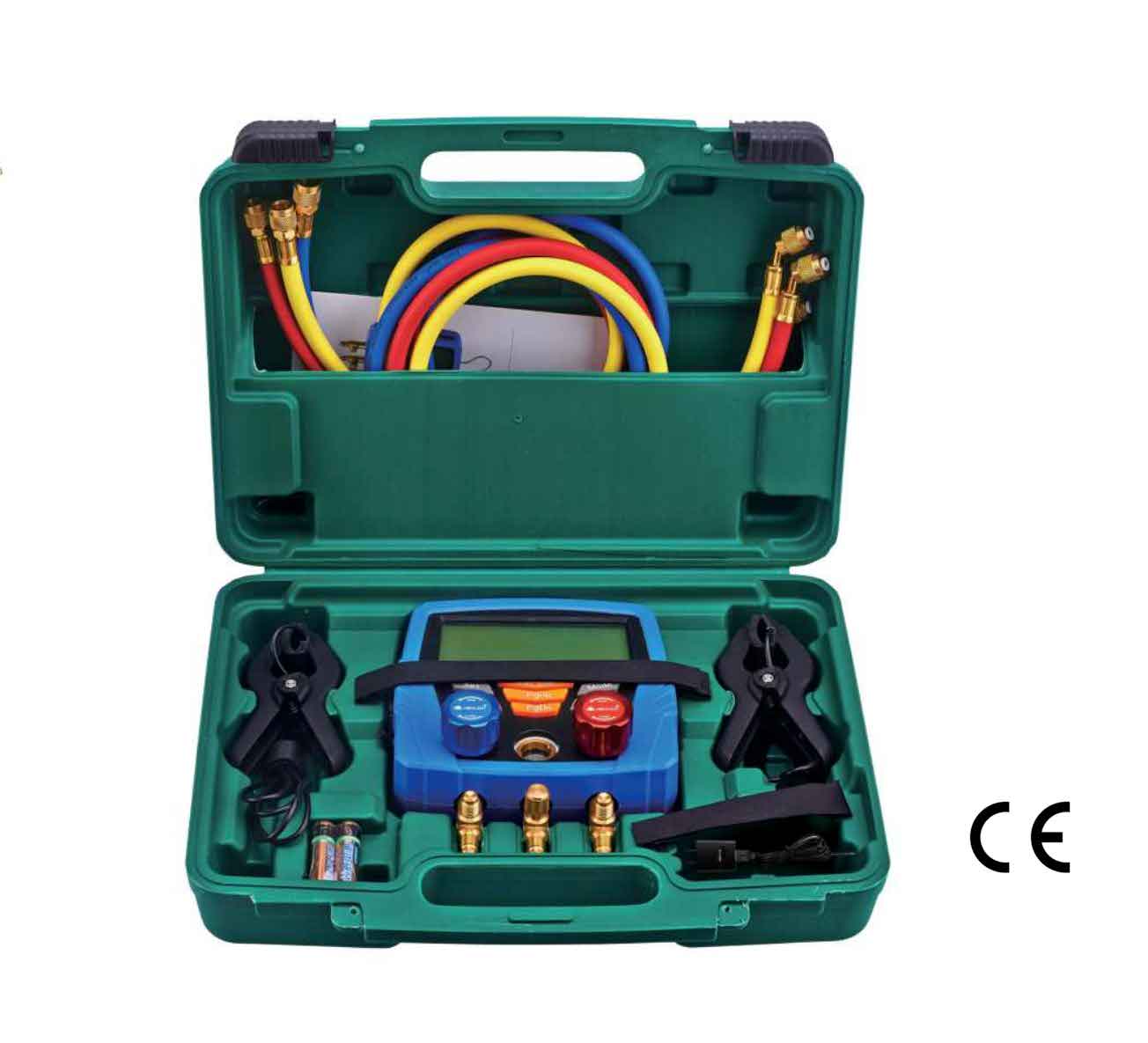

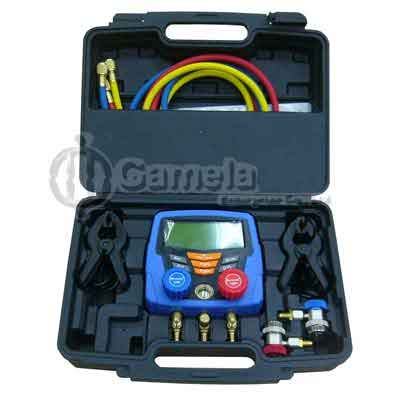

Digital Manifold Gauge set, 60" Hose, Manual Quick Coupler set, Adapter, for R1234yf & 64 kinds refrigerant use
Connection can be 1/4''SAE、5/16''SAE or 1/2''ACME
Can use for 64 kinds of Refrigerant R12, R22, R134a, R404a, R410a, R507, R718, etc.
Feature
1. Large screen display of pressure and temperature.
Observation could be made in multiple angles and the data are clear at a glance.
2. The instrument housing is durable as it is protected by rubber.
3. As many as 36 refrigerant parameters are available for convenient use.
4. Micro power consumption design for a longer battery service life.
5. Various measurements such as the pressure of high and low ends, evaporation temperature,
condensation temperature and the temperature of high andlow-pressure piping.
6. Dual-channel RT measurement can work out the superheat and supercooling.
7. Inspection for leakage of piping.
8. Examination of vacuum.
9. High precision pressure sensor and Digital temperature sensor greatly improve the accuracy and
precision.
10. Multi-mode option can be used in vacuum measurement, pipe leak detection and routing maintance.
11. Different pressure unit (MPa, kPa, bar, psi), temperature unit (°C, °F) can be switched freely to meet
the usage.
12. It switches off automatically when the pressure is overloaded.
PRESSURE | Pressure Measurement Channel | 2 |
Pressure Measurement Range | -0.1~4.2Mpa | |
Overload Pressure | 125% | |
TEMPERATURE | Temperature Measurement Channel | 2 |
Temperature Measurement Range | -55~125℃ | |
VALVE BODY | Material of Valve Body | Aluminum |
Valve Body Connection | 1/4〞M-Flare | |
PROPERTIES | Power Supply Voltage | 6V(AA Battery) |
REFREGERANT | R11、R12、R13、R14、R21、R22、R23、R32、R41、R114、R115、R123、R124、R134A、R143A、R176、R218、R236EA、 R236FA、R245CA、R290、R401A、R401B、R410C、R402A R402B、R403A、R403B、R404A、R406A、R407A、R407B R407C、R408A、R409A、R410A、R410B、R411B、R412A、 R413A、R414A、R416A、R417A、R420A、R421A、R422A、 R422B、R422D、R423、R424A、R427A、R434A、R437A、R438、R501、R502、R503、R504、R507、R600A、R601、R601A、R718、R1234YF |
